BMG-RFID

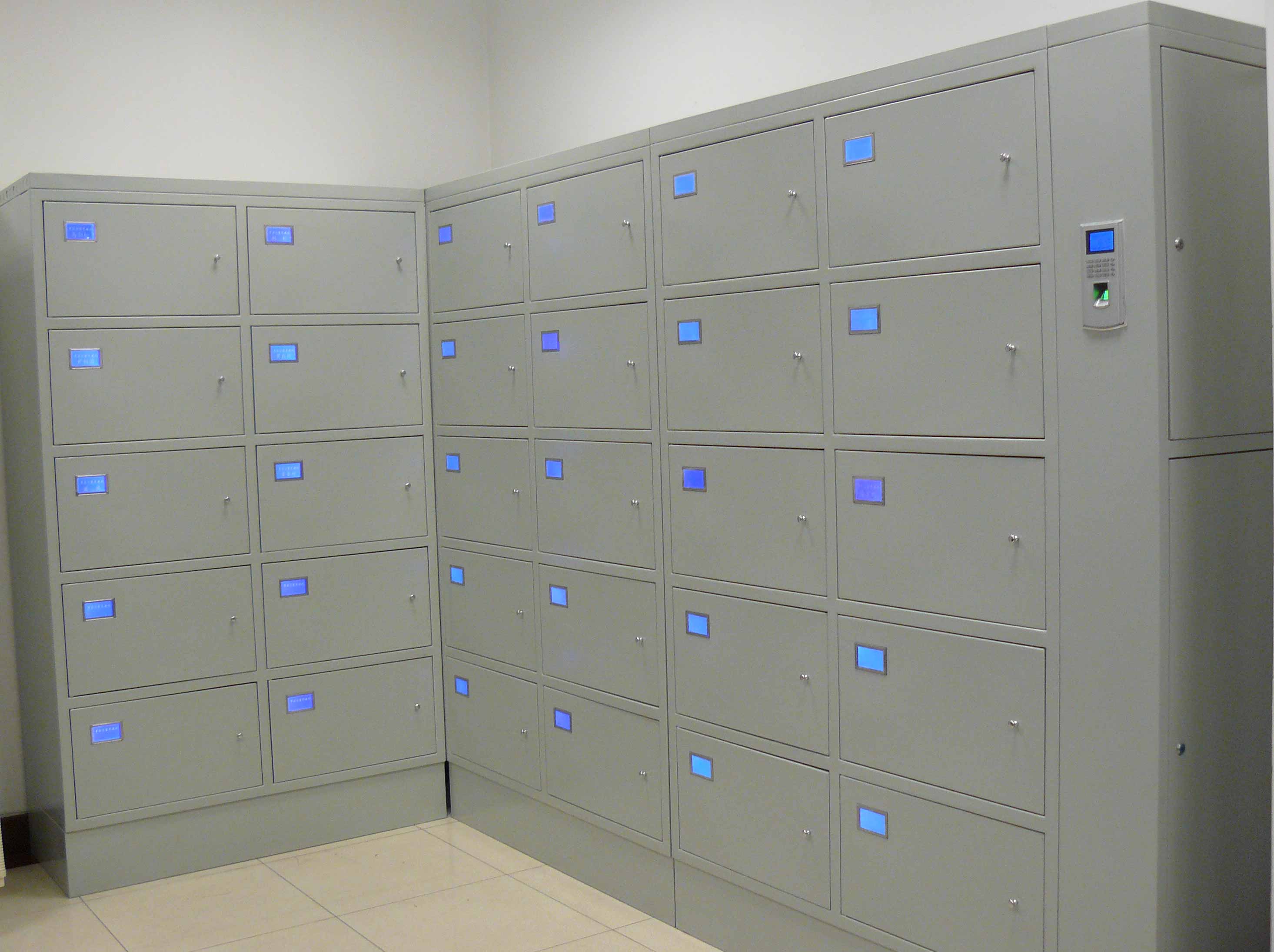

BMG-RFID cabinet for seal carrier
l Support block combination,mutil cabinet comprises a system
l Support display state information by liquid crystal, can modified content
l Used RFID detection technology to automatically identify and record the secret vector access conditions
l Automatic detection and recording open/closed door, support history event query
l Open door by fingerprint, password and fingerprint + password to
l The door prizing alarm, open timeout hint, can optional timeout time
l Support shut down protection and computer work offline mode, prevent leakage, overload protection, anti tangent
l Supported by RS232, RS485 or TCP/IP composition network |
|
|
| RFID cabinet for seal carrier |
|
 |
| Zoom |
|
|
|
| Parameter |
|
|
【Body part】 |
|
＊ |
RFID Detection response time： |
Typical values of less than 5 seconds |
|
＊ |
RFID Detection of the number |
8 everyone box |
|
＊ |
RFID Detection of failure rate: |
<0.5% |
|
＊ |
RFID Detection distance: |
<10cm |
|
＊ |
The detection response time: |
<4s |
|
＊ |
Access response time: |
<4s |
|
＊ |
Fingerprint access failure rate: |
<0.5% |
|
＊ |
The space of in box |
1900mm * 1140mm *470 mm(H*W*D) |
|
＊ |
Single box power: |
Less than 2W |
|
＊ |
Cabinet size: |
1900mm * 1140mm *470 mm(H*W*D) |
|
【Fingerprint portion】 |
|
＊ |
Capacity: |
1450 |
|
＊ |
Response time: |
<2S（Full registration） |
|
＊ |
Matching method: |
1：N |
|
＊ |
Input area: |
16mm * 16mm |
|
＊ |
False acceptance rate (FAR): |
<0.0001% |
|
＊ |
False reject rate (FRR): |
<0.01% |
|
＊ |
User ID： |
1-65535 |
|
＊ |
Language: |
Simplified Chinese, English, traditional Chinese |
|
＊ |
Working temperature: |
-10oC-55 oC |
|
＊ |
Relative humidity: |
20%-80% |
|
【Environment】 |
|
＊ |
Operating system |
Simplified Chinese Microsoft Windows98, Me, 2000, XP, Vista |
|
＊ |
File system |
FAT, FAT32 and NTFS |
|
＊ |
CPU frequency: |
<1G |
|
＊ |
Memory： |
<10M |
|
＊ |
Disk space: |
<500M | |
|
|
