CD-GA

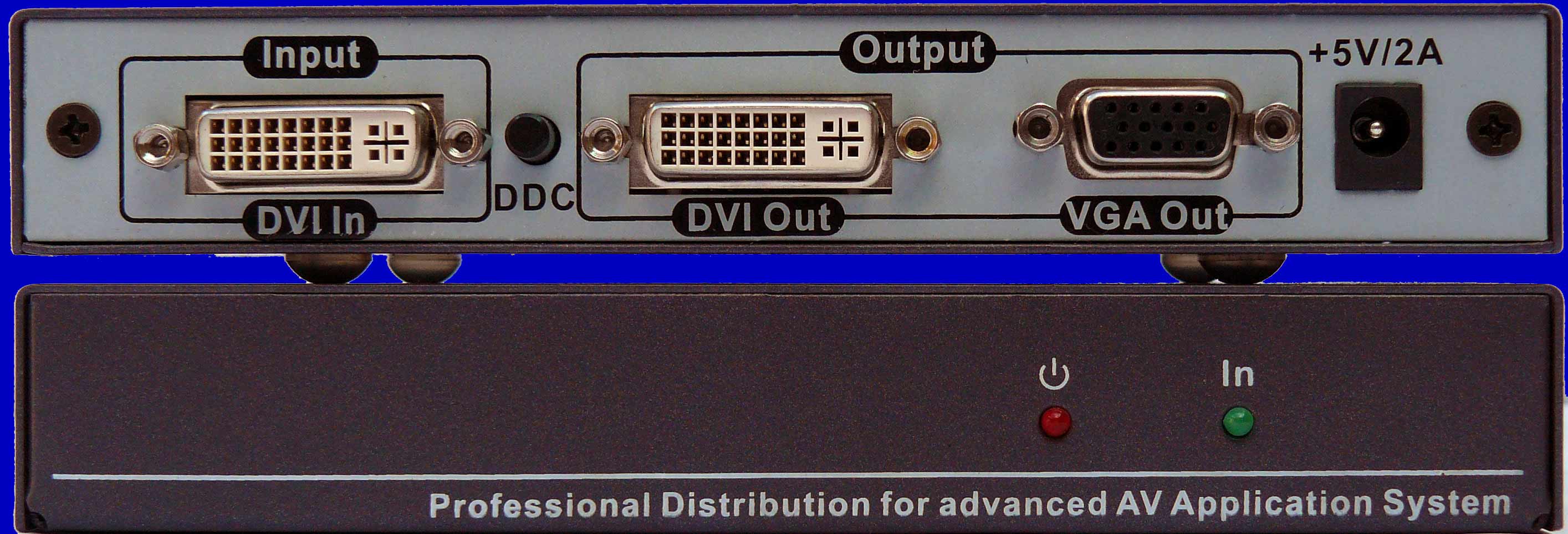

DVI in DVI and VGA out convertor
l Supports one DVI in, one DVI out and one VGA OUT
l Supports LED indicator for signal input
l The max resolution up to 1920×1200, including HDTV 1080p/60
l The receive cable up to 30 feet (10 meters) @ 1920×200×60
l Supports copy the EDID of DVI-output to the in port
l Supports copy the EDID of VGA-output to the in port
l Supports copy the default EDID to the in port
l Auto-adapted the input signal of UXGA standard
l DC+5V/2A supply |
|
|
| DVI in DVI and VGA out convertor |
|
 |
| Zoom |
|
|
|
| Parameter |
|
|
【DVI】 |
|
＊ |
Connector： |
DVI-I (only surport DVI-D signal) |
|
＊ |
Max resolution： |
1920×1200×60 |
|
＊ |
Timing standard： |
DVI 1.0 of DDWG |
|
＊ |
Signal： |
Single link DVI-D |
|
＊ |
Clock rate： |
25～170M Hz |
|
＊ |
Coupling： |
DC coupling |
|
＊ |
Max length of Input cable： |
30 feet (10 meters) |
|
Note: The recieve distance varies greatly depending on the signal resolution and on the type of cable, graphic card, and display used in the system. |
|
【VGA】 |
|
＊ |
Connector： |
DB15 Female |
|
＊ |
Bandwidth： |
170M Hz |
|
＊ |
Timing standard： |
UXGA of VESA |
|
＊ |
Coupling： |
DC coupling |
|
＊ |
RGB Impedance： |
75 Ω±1Ω |
|
＊ |
RGB output Level： |
0.69 VP-P～0.71 VP-P typical 0.7VP-P |
|
＊ |
HV Impedance： |
51 Ω±1Ω |
|
＊ |
HV output Level： |
TTL |
|
【Other】 |
|
＊ |
Supply： |
DC 5V/2A |
|
＊ |
Power： |
<10W |
|
＊ |
Operate temperature： |
0°C～40°C |
|
＊ |
Store temperature： |
-20°C～85°C |
|
＊ |
Enclosure dimensions： |
165mm × 100mm × 30mm | |
|
|
