MAV-164L
Video with single channel audio Matrix
l Support sixteen in to be routed four out
l Support analog single channel audio and video
l 50M Hz video 200K Hz audio @-3dB bandwidth, at fully loaded
l Buffered and amplified out
l Supports switch for only video, only audio or video with audio mode
l Support panel, Rs232, IR control
l Support saved to or called from four status of prefab
l Supports the general ASCII and the Forthgoer’s HEX protocol |
|
|

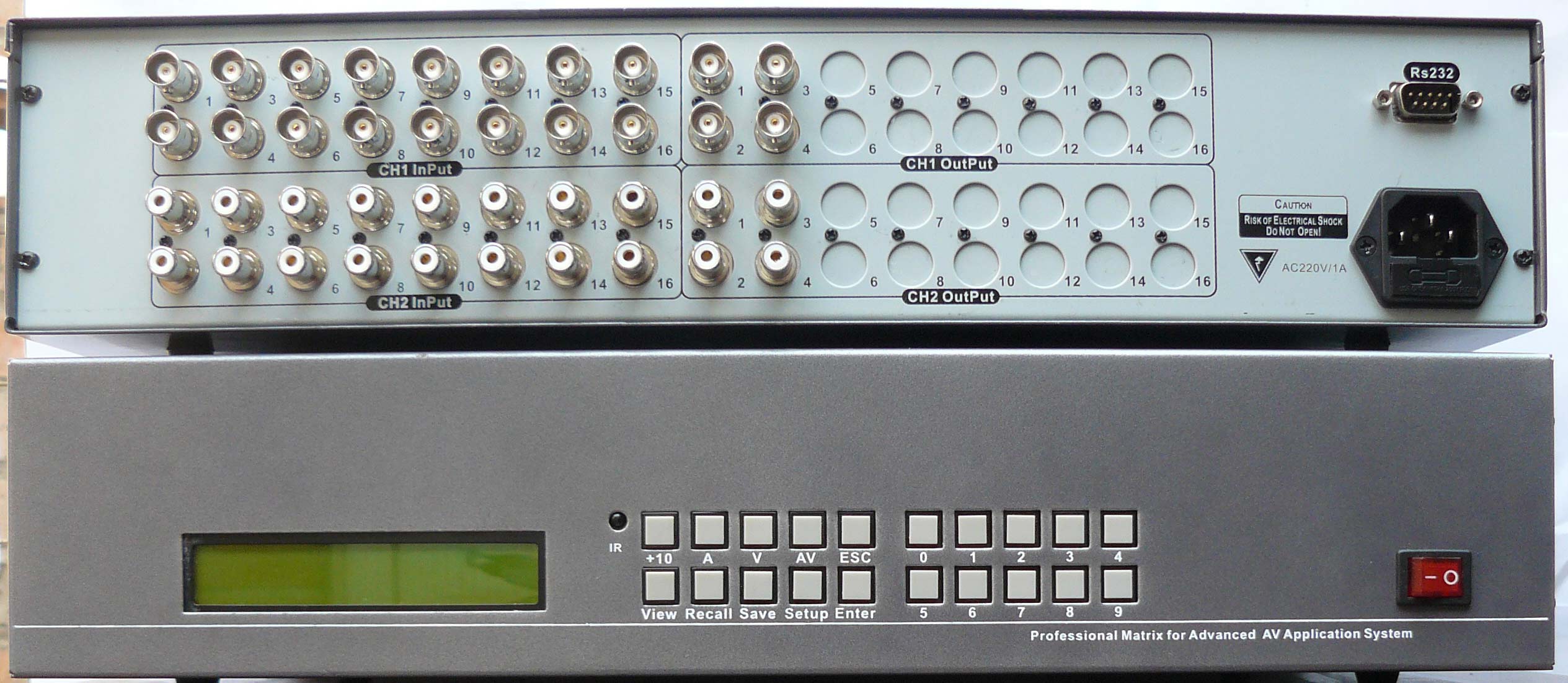

| 16 in 4 out AV matrix |
|
 |
| Zoom |
|
|
|
| Parameter |
|
|
【Video Channel】 |
|
＊ |
Input/Output： |
Sixteen in and four out |
|
＊ |
Signal： |
CVBS |
|
＊ |
Input Level(No offset) ： |
0.4 VP-P～2.0 VP-P typical 1VP-P |
|
＊ |
Coupling： |
DC coupling |
|
＊ |
Gain： |
0dB |
|
＊ |
Bandwidth： |
50M Hz @-3dB |
|
＊ |
Impedance： |
75 Ω±1Ω |
|
＊ |
connector： |
BNC |
|
【Audio Channel】 |
|
＊ |
Input/Output： |
Sixteen in and four out |
|
＊ |
signal： |
Analog single channel audio |
|
＊ |
Input Level(No offset) ： |
0.4 VP-P～6.0 VP-P typical 0.775VP-P |
|
＊ |
Coupling： |
DC coupling |
|
＊ |
Gain： |
0dB |
|
＊ |
Bandwidth： |
>200K Hz @-3dB |
|
＊ |
Impedance： |
600Ω±6Ω |
|
＊ |
Connector： |
RCA |
|
【Other】 |
|
＊ |
IR remote distance： |
15 meters (no covering) |
|
＊ |
Serial port connector： |
DB9 Male (2 = TX, 3 = RX, 5 = GND) |
|
＊ |
Baud rate (b/s) ： |
Surports 1200、2400、4800、9600、19200、38400、43000、56000、57600、115200 |
|
＊ |
Serial protocol： |
8 data bits, 1 stop bit, no parity |
|
＊ |
Command protocol： |
The general ASCII or the Forthgoer’s HEX protocol |
|
＊ |
Supply： |
AC180～240V 50Hz |
|
＊ |
Power： |
<100W |
|
＊ |
Operate temperature： |
|
| | |
